- VOLUME ADJUSTABLE DISPENSER
- STAINLESS STEEL TANKS
- GEAR DRIVEN
- 1:1 OR 2:1 RATIO
- MOUNTED ON 'EZ-RIDE' COASTERS
- COMES OCMPLETE WITH HOSES AND APPLICATOR
- 110V
- 5 GALLON CAPACITY EACH HOPPER
- VISCOSITY 50-8,000 CPS
- 1 GALLON PER MINUTE

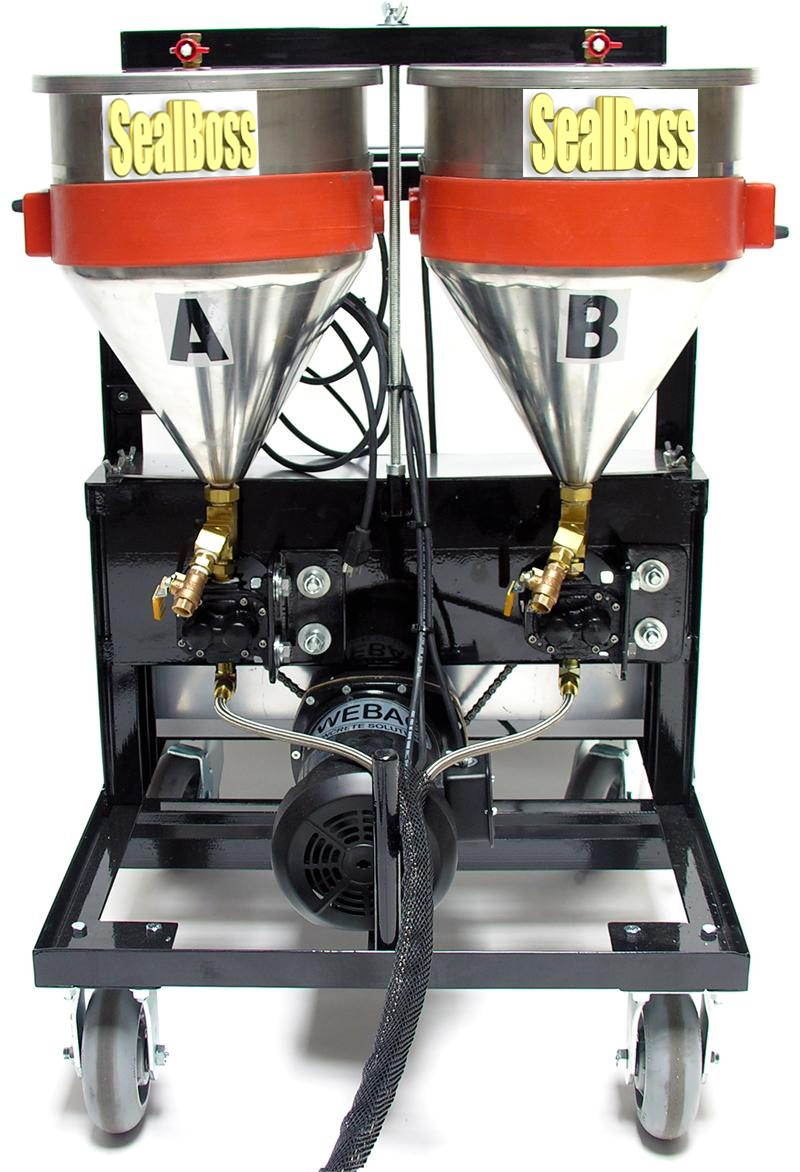

- SEALBOSS
Advanced Design Features
- Pumps Epoxy, Polyurethane & Polyurea
- Very Affordable And Reliable
- Pumps Thicker Materials
- Rugged Construction And Easy To Use
- Volume Adjustable Dispenser
- Extra Lightweight Aluminum Dispenser
- Stainless Steel Tanks
- Gear Driven For Easy Ratio Changes
- Compact And Lightweight Unit
- Unit Mounted On 'EZ-Ride' Coasters
- Complete Set With Hoses And Applicator
- Easy To Clean
- Heater Bands Optional
- Batterie/ Inverter Use Optional
SPECIFICATIONS
Weight: 165 lbs. dry Height: 38-1/2”, Width: 27”, Length: 30”
Motor: 1/2HP DC Gear motor w/separate heat sink, RPM: 0 - 500,
Volts: 90-130, Torque: 202 In. Lbs., Amps: 5.5
Pumps: Cast iron internal rotary gear pumps w/steel fitted rotor gear
Tanks: 5 gallon, 14 gauge 304 stainless steel (ss) tanks w/ss lids, w/custom welded ss
mounting nipples for ss suction line strainers and pump mounts, attached to frame with
ss worm gear clamps
Power: 110 volt
Hoses: 3/8” x 14.5’ Nylon braided hoses coupled with a protective sleeve
Wheels: 6” non marring gray balloon cushion wheels for easy roll over of cords and debris,
swivel wheels have brakes
Dispensing
Unit: Extended lightweight handle with a dual port manifold,
on/off switch and speed control knob
Viscosity: 50 – 25,000 cps
Flow Rate: Up to 2 gallons per minute
Ratios: 1 – 1 ratio, easily geared to other ratios
